For further information on any of the components detailed below, or if you have a requirement for Pneumatic Components that you think we maybe able to assist with, please complete the form provided.

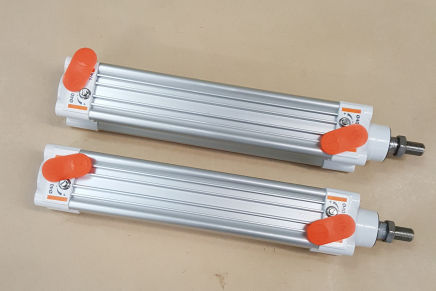

Air Cylinders
MPNU0636 Air Cylinder 40 x 160 Stroke
MPNU0637 Rear Eye Cylinder Mounting 40MM
MPNU0635 Air Cylinder 40 x 100 Stroke
MD510358 Centre Trunnion Mounting
MPNU0633 Air Cylinder 40 x 25 Stroke
MPNU0634 Front Flange Cylinder Mounting
MPNU0638 Air Cylinder 50 x 120 Stroke
MPNU0639 Rear Eye Mounting 50MM
************ Cylinder Seal Kits to suit Cylinder type
************ Conversion kits for obsolete cylinders
Manufactured to the following standard ISO15552 the Air Cylinders are designed and built with material and/or surface treated so that they are highly resistant to corrosion.
With 316 stainless steel Piston Rod, Needle Valve and Screws. End Caps are manufacured of anodized pressure die-cast aluminum with epoxy-vinyl ester and epoxy-resin powder coating.
Available from 32mm bore upto 125mm bore.
Regulators
MPNU0009 Filter Regulator/Lubricator

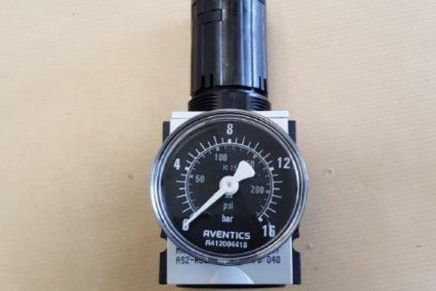

MPNU0579 Air Regulator c/w Guage
The air regulator is fitted on the weigher, 0.5-10 bar c/w gauge. Diaphragm type pressure regulator. Housing polyamide with 3/8 ports. Lockable with padlock cap.
Manifold Assemblies

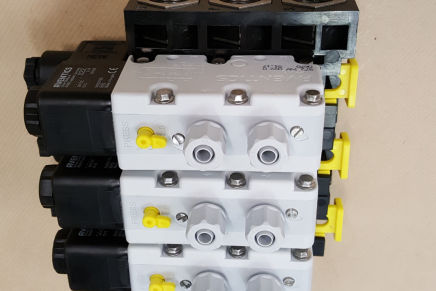

MPNU0008 3 Station Manifold Assembly 24V DC
3 station manifold assembly for weighers, comprising base, 3 solenoid valves c/w coils. Manifold base plastic construction (Polyoxymethylene) suitable for ambient temperature -15 to +50 degrees C. The bases are modular and can be configured to suit number of valves required.
Solenoid Valves

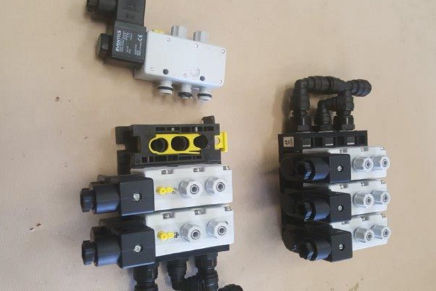

MPNU0135 SIngle Solenoid Valve 8MM Ports
MPNU0046 Single Solenoid Valve 10MM Ports
MPNU0546 Solenoid Plug Lead
MPNU0021 Coil 24V DC
MPNU0060 Solenoid Valve Repair Kit
The solenoid valves are 5/2 directional valves, electrically operated. Solenoid body is plastic construction (Polyoxymethylene) with stainless steel screws. For use as single valve or mounting on to manifold base. Port size 8mm or 10mm, manual overide button and throttle adjustment screw.

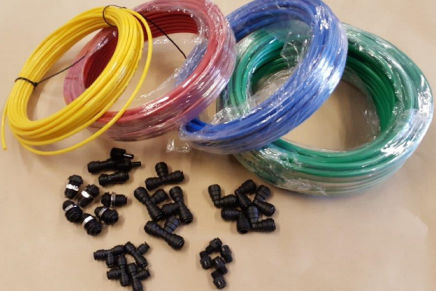

Fittings and Pipes
MPNU0442 Isolator Tap 10MM
MPNU0443 Isolator Tap 12MM
************ Air Fittings and Piping
Push-in fittings designed for pneumatic application. They provide a fast and secure way of connecting tubes and offer considerable advantages over conventional fittings. Push-in fittings can be easy assembled from compressor receiver to air line service components. All size and fittings available from 4mm to 12mm diameter.
Pressure Switches

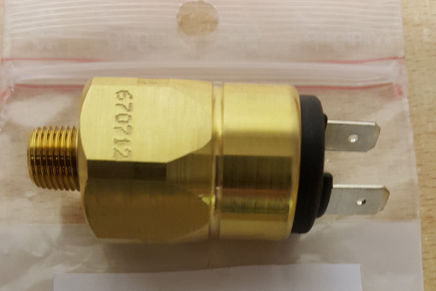

ESEN0005 Air Pressure Switch
The Pressure Switch is to set the weighers minimum pressure to 30 psi.
For over the past two decades Portpack UK Limited have become re-nowed for designing and manufacturing Mobile Bagging Systems, the components shown above have been utilised and continue to be utilised in our weighers and Mobile Bagging Unit.
